What is MCP?

The Model Context Protocol (MCP) is an open protocol that standardizes how applications provide context and tools to LLMs. With MCP, you can extend Factory’s capabilities by connecting it to various data sources and tools through standardized interfaces.

​
Configuring MCP Servers

Factory supports MCP through Factory Bridge, which runs MCP servers on your local machine and makes their tools available to Factory.

​
Configuration Process

To set up MCP servers with Factory:
  1. Install Factory Bridge if you haven’t already
  2. Configure your MCP servers in the configuration file (details below)
  3. Factory Bridge will automatically detect and load your MCP servers
  4. The tools provided by your MCP servers will become available in Factory

​
Accessing the MCP Configuration File

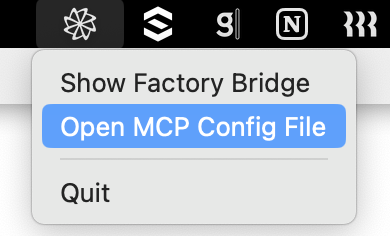

The easiest way to access and edit your MCP configuration is through the Factory Bridge system tray icon:
  1. Locate the Factory Bridge icon in the system tray (menu bar on macOS, notification area on Windows)
  2. Click on the icon to open the context menu
  3. Select “Open MCP Config File” from the menu options
Bridge Menu This will open the configuration file in your default text editor. If the file doesn’t exist yet, Factory Bridge will automatically create it with an empty default configuration. For reference, the configuration file is stored at:
  • macOS: ~/Library/Application Support/Factory Bridge/mcp.json
  • Windows: %APPDATA%\Factory Bridge\mcp.json

​
Server Types

Factory Bridge supports two types of MCP servers:

​
Stdio Servers

Stdio servers run as local processes and communicate via standard input/output streams. These are ideal for:
  • Local tools and utilities
  • File system operations
  • Development and testing environments
  • Servers that need direct access to your machine

​
Streamable HTTP Servers

Streamable HTTP servers are remote endpoints accessed via HTTP/HTTPS URLs. These are ideal for:
  • Cloud-hosted MCP services
  • Shared team resources (like documentation servers)
  • External APIs and services
  • Servers that don’t require local installation

​
Configuration Format

The MCP configuration file uses JSON format. The structure varies based on the server type.

​
Stdio Server Configuration

{
  "mcpServers": {
    "server-name": {
      "type": "stdio",
      "command": "executable",
      "args": ["arg1", "arg2"],
      "env": {
        "ENV_VAR1": "value1",
        "ENV_VAR2": "value2"
      },
      "disabled": false
    }
  }
}

​
Streamable HTTP Server Configuration

{
  "mcpServers": {
    "server-name": {
      "type": "http",
      "url": "https://api.example.com/mcp",
      "headers": {
        "Authorization": "Bearer token",
        "X-API-Key": "secret"
      },
      "disabled": false
    }
  }
}

​
Configuration Fields

Common fields:
  • mcpServers: An object containing named server configurations
  • type: Server type - either "stdio" or "http" (required)
  • disabled: Optional boolean to temporarily disable a server without removing it
Stdio server fields:
  • command: The executable to run (required)
  • args: Array of command-line arguments (required)
  • env: Optional environment variables to pass to the server
Streamable HTTP server fields:
  • url: The HTTP/HTTPS endpoint URL (required)
  • headers: Optional HTTP headers for authentication or other purposes

​
Example Configuration

Here’s an example configuration with multiple MCP servers, showing both stdio and Streamable HTTP servers:
{
  "mcpServers": {
    "factory-docs": {
      "type": "http",
      "url": "https://docs.factory.ai/mcp"
    },
    "google-maps": {
      "type": "stdio",
      "command": "npx",
      "args": ["-y", "@modelcontextprotocol/server-google-maps"],
      "env": {
        "GOOGLE_MAPS_API_KEY": "your-api-key-here"
      }
    },
    "firecrawl": {
      "type": "stdio",
      "command": "npx",
      "args": ["-y", "firecrawl-mcp"],
      "env": {
        "FIRECRAWL_API_KEY": "fc-****************************"
      }
    },
    "slack": {
      "type": "stdio",
      "command": "npx",
      "args": ["-y", "@modelcontextprotocol/server-slack"],
      "env": {
        "SLACK_BOT_TOKEN": "xoxb-******************",
        "SLACK_TEAM_ID": "T********"
      },
      "disabled": true
    }
  }
}
In this example:
  • The factory-docs server is a Streamable HTTP server that provides access to Factory documentation
  • The google-maps server is a stdio server that provides tools for interacting with Google Maps
  • The firecrawl server is a stdio server enabled and configured with an API key
  • The slack server is a stdio server that is disabled (it won’t be loaded) but its configuration is preserved for future use

​
Automatic Configuration Updates

Factory Bridge automatically detects changes to the MCP configuration file in real-time. When you modify the mcp.json file:
  1. Factory Bridge detects the changes immediately
  2. It identifies which servers need to be stopped, started, or restarted
  3. It applies the changes without requiring a restart of the application
  4. New servers and tools are automatically made available in Factory
This allows you to add, modify, or remove MCP servers without restarting Factory Bridge. Simply edit the configuration file, save your changes, and the new tools will be available in Factory.

​
Disabling Servers

The disabled field allows you to temporarily disable a server without removing its configuration. This is useful for:
  • Troubleshooting issues by selectively enabling/disabling servers
  • Maintaining configurations for servers you only use occasionally
  • Testing different server configurations
When a server is disabled, Factory Bridge will skip loading it but keep its configuration in the file for future use. To disable a server, simply add "disabled": true to its configuration:
"slack": {
  "command": "npx",
  "args": ["-y", "@modelcontextprotocol/server-slack"],
  "env": {
    "SLACK_BOT_TOKEN": "xoxb-******************",
    "SLACK_TEAM_ID": "T********"
  },
  "disabled": true
}
To re-enable it, either remove the disabled field or set it to false.

​
Using MCP Tools in Factory

Once your MCP servers are configured and running, Factory will automatically detect the available tools and make them available for use. When using Factory, it will intelligently determine when to use MCP tools based on your requests. You can also explicitly ask Factory to use a specific tool by referring to it by name.

​
Windows Troubleshooting – npx Execution

Running MCP servers via npx works out-of-the-box on macOS / Linux, but Windows users may encounter issues when trying to execute npx commands. Why it happens:
On Windows, npx is a script (npx.cmd / npx.ps1), not an executable. MCP stdio servers launch without shell access, so Windows cannot run the script directly.

​
Quick Fix – wrap the call with cmd /c

{
  "mcpServers": {
    "slack": {
      "command": "cmd",
      "args": [
        "/c",
        "npx",
        "<your_mcp_command_here>"
      ],
    }
  }
}

​
What’s New

✅ Streamable HTTP Transport Support: You can now connect to remote MCP servers over HTTP/HTTPS! Use Streamable HTTP servers to access cloud-hosted MCP services, documentation servers, and shared team resources without local installation.

​
Coming Soon

We’re actively working on expanding MCP support with these upcoming features:
  1. Image Tool Support: Support for tools that return image outputs.
  2. Configuration UI: A dedicated UI for MCP configuration with error reporting and server status monitoring.

​
Resources

For more information about MCP and available servers:
